K7
KICKPI-K7 Octa-core 64-bit Cortex-A72 X4 + Cortex-A53 X4, processor RK3576, Support efficient secondary development and independent customization
- Strong Core Power: Cortex-A72 X4 + Cortex-A53 X4.Mali-G52 GPU, enjoy smooth graphics processing. Supported by 6 TOPS NPU, it offers powerful computing.
- High-speed Interconnection: 4G/5G full network compatibility, smooth connection to mobile networks anytime and anywhere. Dual Gigabit Ethernet, wired dual channels, stable and low latency;
- Multi-screen Intelligent Control, free Expansion: HDMI 4K@120Hz, the first choice for ultra HD large screen; 4K@120Hz,one-line direct connection, efficient and convenient MIPI-DSI 1080P@60Hz, compatible with mobile devices
- Efficient secondary development and independent customization: Embedded operating system underlying drivers, providing technical information
- Widely applicable fields: Widely applicable to IoT gateways, customized markets for industries such as NVR storage, industrial control tablets, industrial testing, and in-car central control.

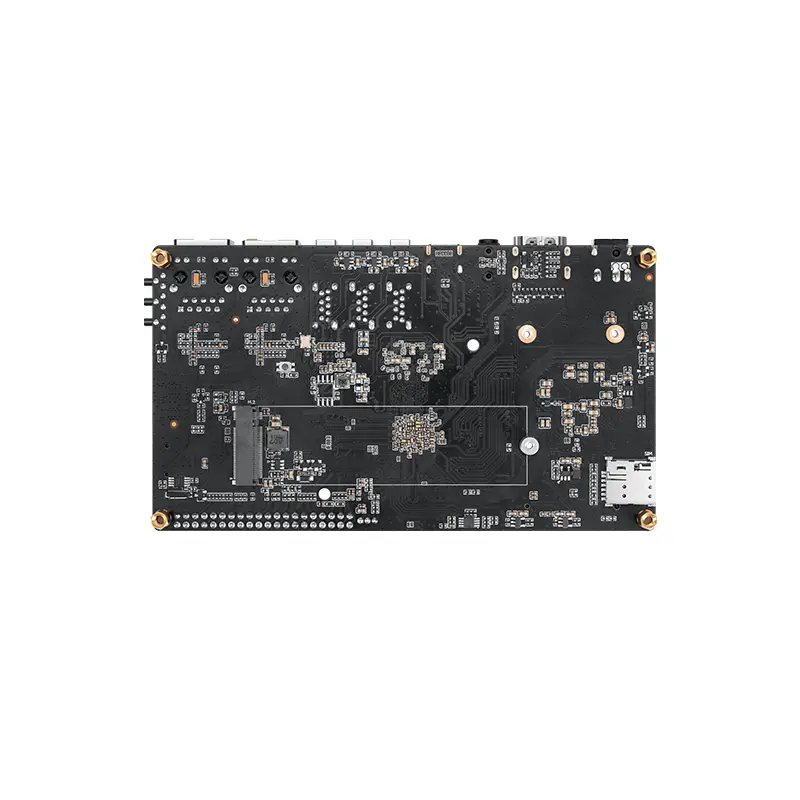

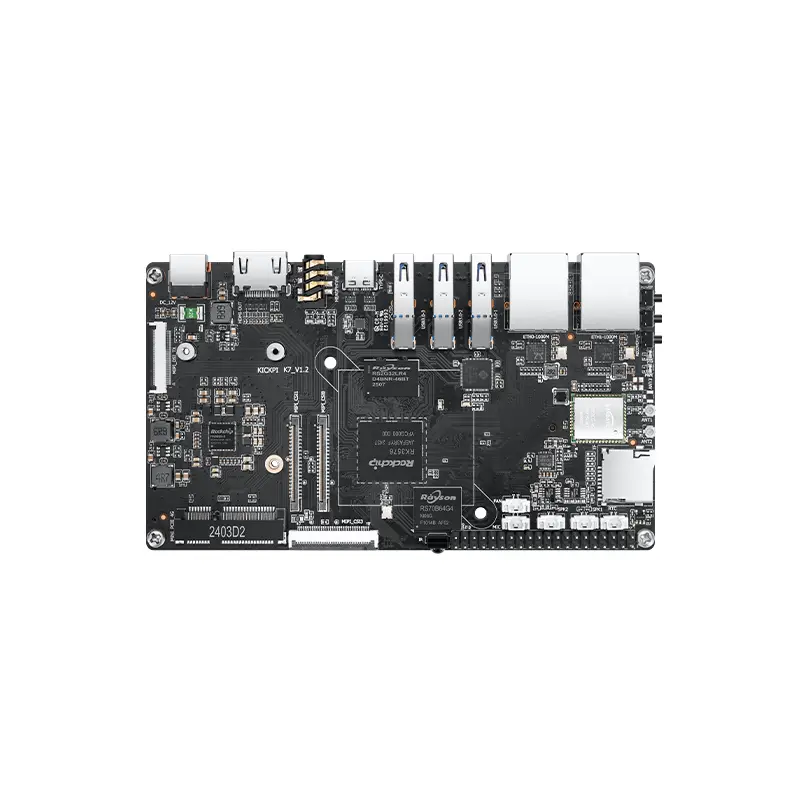

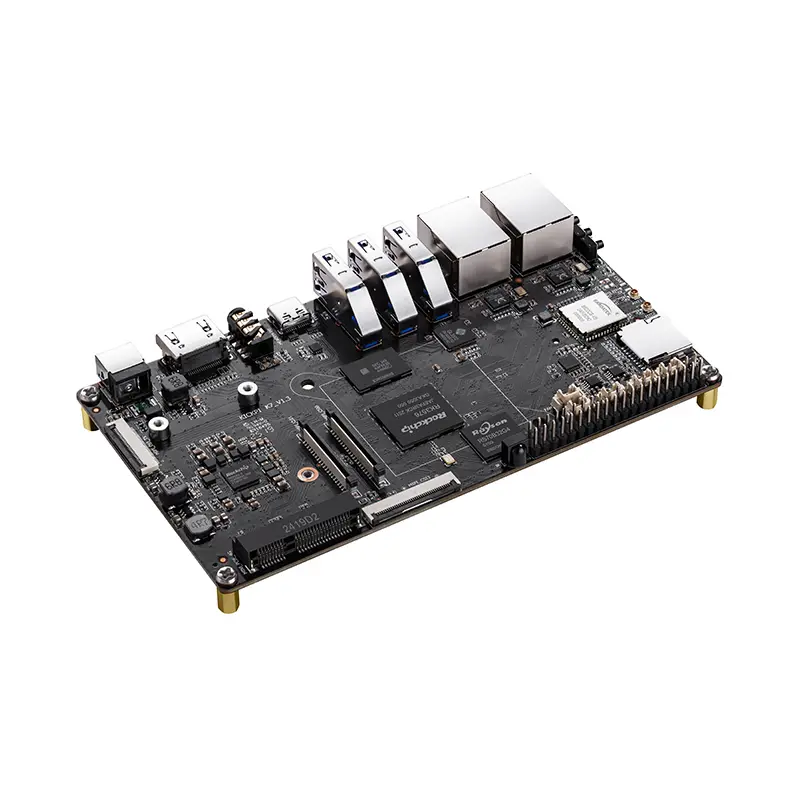

KICKPI-K7 is a development board based on the Rockchip RK3576 main control chip. It has a Cortex-A72 X4 + Cortex-A53 X4 processor, low power consumption, and high performance. It supports various communication methods, such as a 4G mobile network, dual gigabit to a large network, dual-band WIFI, etc. It has stable communication, faster speed, and is suitable for various scene requirements.
Key Features:
- CPU: Cortex-A72 X4 + Cortex-A53 X4
- GPU: Mali G52 MC3
- NPU: RKNN 6 Tops
- Memory: 4G / 8G / 16G
- Storage 16G / 32G
- Systems Supported: Android 14.0 / Debian 12 / Ubuntu 24.04
Application:
- Commercial Display
- Medical Technology
- Internet of Things
- Industrial Control
- AI Intelligence
- Industrial Inspection

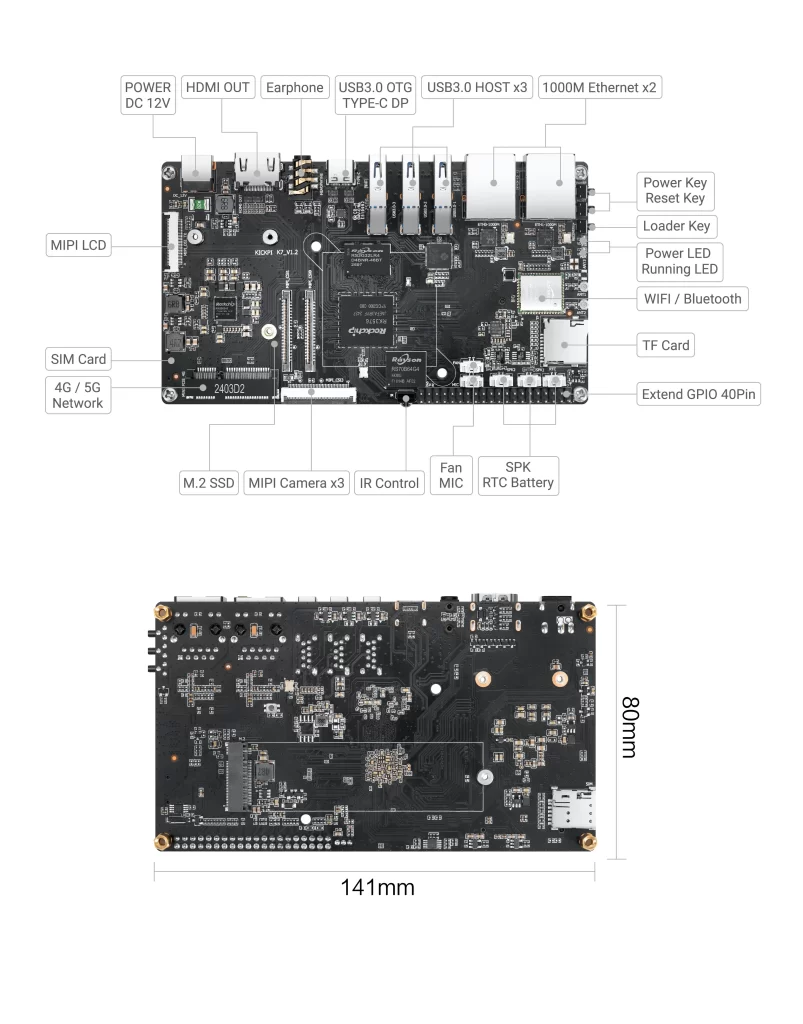

Hardware interface:
Hardware spec:
| Function | Main Parameter |
| Main Controller | Rockchip RK3576 |
| CPU | Quad Cortex-A72 and quad Cortex-A53 |
| GPU | Mali G52 MC3 |
| NPU | RKNN 6 Tops |
| Memory | 4G / 8G /16G |
| Storage | 16G / 32G |
| Systems Supported | Android 14.0 / Debian 12 / Ubuntu 24.04 |
| Power Supply | DC 12V |
| Cooling Fan | Y |
| LED Light | * Power LED * Work LED |
| USB HOST | * USB 3.0 HOST X3 |
| USB TYPE-C | USB3.1 OTG / USB Debug / DP v1.4 |
| Infrared Receiver | Y |
| Real-Time Clock | Y ( HYM8563 ) |
| Debug Serial Port | Y |
| Buttons | * Recovery KEY * RESET KEY * MASKROM KEY * POWER KEY |
| Expansion Pins | Extend Pin Total 40Pin : * UART X5 * SPI X1 * PWM X7 * ADC X3 * I2C X3 |
| *I3C x1 *GPIO x22 *PDM x1 *CAN x2 | |
| HDMI Display | X1 ( up to 4K @ 120Hz ) |
| MIPI DSI Display | X2 ( up to 1920*1080 @ 60Hz) |
| LVDS Display | No Support |
| EDP Display | No Support |
| MIPI CSI Camera | 4 Lane X4 |
| Speaker | Y |
| Headphones | Y |
| Microphone | Y |
| WIFI/Bluetooth | Y ( RTL8822CS ) |
| Ethernet | 1000M X2 |
| 4G Mobile Network | Y (4G EC20 / EC200) (5G RG200U) |
| SATA Hard Drive | Y |
| M.2 Hard Drive | Y |
